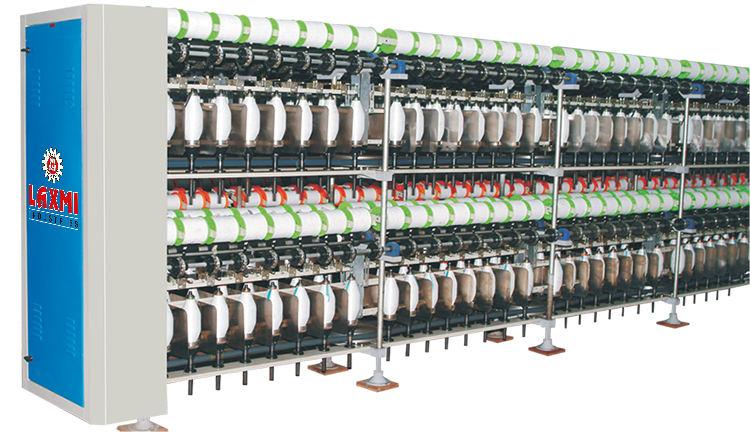

LI - 100
(60/70 mm Pot Dia)
Two For One Twister For Polyester & Viscose Yarn
TFO Twister 60 mm Pot Dia
| Spindle |
396 |
432 |
468 |
504 |
540 |
576 |
| Section |
11 |
12 |
13 |
14 |
15 |
16 |
| Machine (Ft) |
3 HP x 2 |
3 HP x 2 |
3 HP x 2 |
3 HP x 2 |
4 HP x 2 |
4 HP x 2 |
| Power (HP) |
51' - 06" |
55' - 10" |
60' - 2" |
64' - 06" |
68' - 10" |
73' - 2" |
| Spindle Pitch |
135 mm |
| Spindle Width |
24" ( Inches ) |
| Spindle Height |
5'-2" Feet |
| Spindle In Section |
36 nos |
| Spindle Pot |
60 mm dia S. S. POT |
| Feed Tensioner |
Boll Ceramic |
| Over Feed |
Excellent Self Design Suitable for Cone Winding |
| Take Up Traversing |
Claim Box Oil Bath |
| Denior |
30 to 100 Denior |
| Viable Twist Range |
800 TPM to 3500 TPM |
| Spindle RPM |
Up to 12000 ( MECHANICAL SPEED ) |
| Feed Bobbin |
32 x 36 x 210/240 mm Alluminium / plastic Tubes up to 95 Dia |
| Yarn Take up Speed |
Up to 30 Met / Min |
| Take Up Package |
Nylone Creadle Roll Pin |
| Roll |
Roll 135f X 85Drum X 100mm Total Length |
| Caintain |
500 gm |
TFO Twister 70 mm Pot Dia
| Spindle |
224 |
256 |
288 |
320 |
352 |
384 |
416 |
448 |
| Section |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
| Machine (Ft) |
33' |
37' |
41' |
45' |
49' |
53' |
57' |
61' |
| Power (HP) |
2x2 |
2.5x2 |
2.5x2 |
2.5x2 |
3x2 |
3x2 |
4x2 |
5x2 |
| Spindle Pitch |
146 mm |
| Spindle Pot Dia |
Available in 60, 62 & 70 mm Pot Dia |
| Spindle In Section |
32 Nos |
| Take up System |
148 mm MS Roll Pin & Craddle |
| Roll Size |
110 mm Travers x 130 Flange Roll |
| Max. Package |
550 Gram |
| Cops Size |
32 x 36 x 240 mm Allu. Cops |
| Feed Tensioner |
Ball & Ceramic Tensioner |
| Viable TPM Range |
500 to 4000 RPM |
| RPM Capacity |
9000 to 12000 RPM |
| Machine Width |
2 Feet |
| Machine Height |
6 Feet |
Features
- Most economy power saver excellent design for captive consumption.
- Best suitable for fine denier and high twist per meter.
