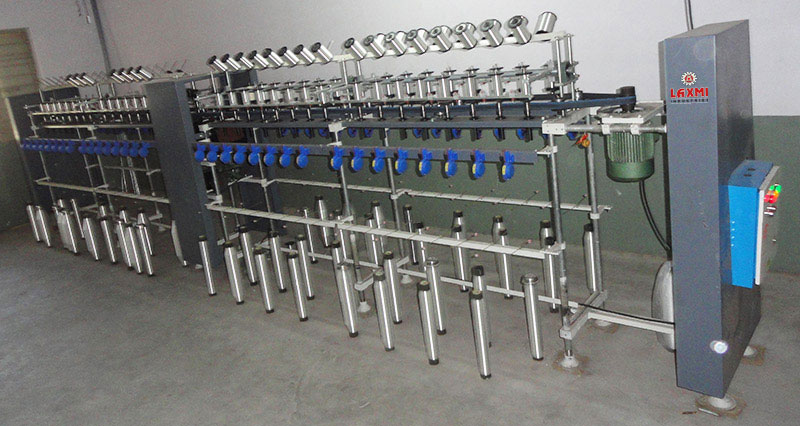

Hylum Bobbin Winder
Winder
Technical Specification
| Type |
Single Deck on both sides |
| Spindle |
32 |
48 |
64 |
80 |
96 |
| Section |
2 |
3 |
4 |
5 |
6 |
| Power (HP) |
1X1 + 0.5X1 |
1X1 + 0.5X1 |
1.5X1 + 0.5X1 |
2X1 + 0.5X1 |
2X1 + 0.5X1 |
| Length |
12'-03" |
16'-01" |
20'-02" |
24'-03" |
28'-4" |
| Spindle Pitch |
140 mm |
| Machine Width |
2'-Feet 3"-Inches |
| Machine Height |
5 Feet |
| Spindle in Section |
16 nos |
| Spindle speed |
3500 to 5000 RPM |
| Winding Speed |
UP to 1000 Met/Min |
| Take up Pirn |
Hylum Bobin :-F-73mm B-38mm Beral Length-100mm |
| Max Take up Dia |
73mm |
| Take up Capacity |
200 gm. |
| Travers System |
Cam Box with Oil Bath 1 mm ersed, Cylinder cam & Anti patterning device |
