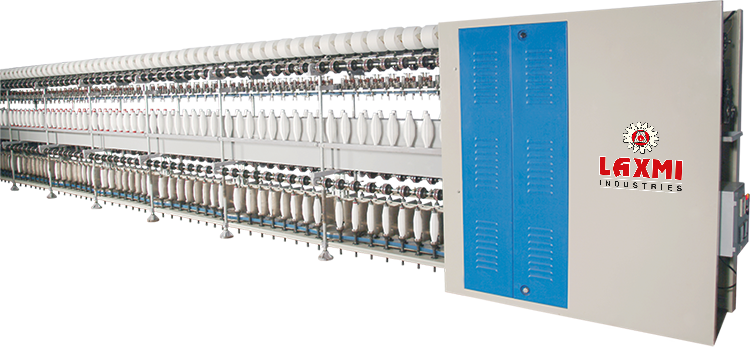

LI - 133 HS (Crape Yarn)
Two For One Twister For Polyester & Viscose Yarn
Technical Specification
| Spindle |
192 |
208 |
224 |
240 |
256 |
| Section |
12 |
13 |
14 |
15 |
16 |
| Length (ft) |
57 |
61 |
65 |
69 |
73 |
| Power Motor |
4.4 K.W |
5.5 K.W |
7.5 K.W |
7.5 K.W |
9 K.W |
| Heater |
2 K.W |
2.5 K.W |
3 K.W |
3.5 K.W |
4 K.W |
| Spindle Pitch |
148 mm. |
| Machine Width |
3 Feet |
| Spindle RPM (mech) |
Up to 18000 |
| Machine Height |
7 Feet |
| Spindle in Section |
16 Nos |
| Spindle Pot dia |
62 mm |
| Twist Range |
350 to 3000 TPM |
| Spindle Drive |
Tangential Important 30 mm. Sendwich belt |
| Denier Rang |
30 to 250 D |
| Friction Twist spindle revulation |
1,50,000 |
| Feed Tube |
32 X 36 X 240 mm. Cops Tube |
| Maximum feed Diameter |
70 mm |
| Take up Tube |
57 X 69 X 135 mm paper tube |
| Take up Type |
Flangeless cylindrical |
| Take up Traverse |
115 mm |
| Take up content |
Up to 1200 gm |
| Temperature control |
150 to 250 C (Micro softwear type) |
| Heater |
Power saves close content grorp Heater |
| Display |
RPM, TPM, MPM & Temp C. |
Features
- Singal Motor driven design for best energy saving.
- Yarn Path support ceramic guide geometry & quality
- Base Twist And Frictional Twist independently settable through gear change.
- Traverse Gear box provided with oil bath And forced lubrication.
- Higher Energy saver Heater Suitable for best Economy fabric word.
