LI - 128 RC
(60/70/90 mm Pot Dia)

Two For One Twister For Polyester & Viscose Yarn

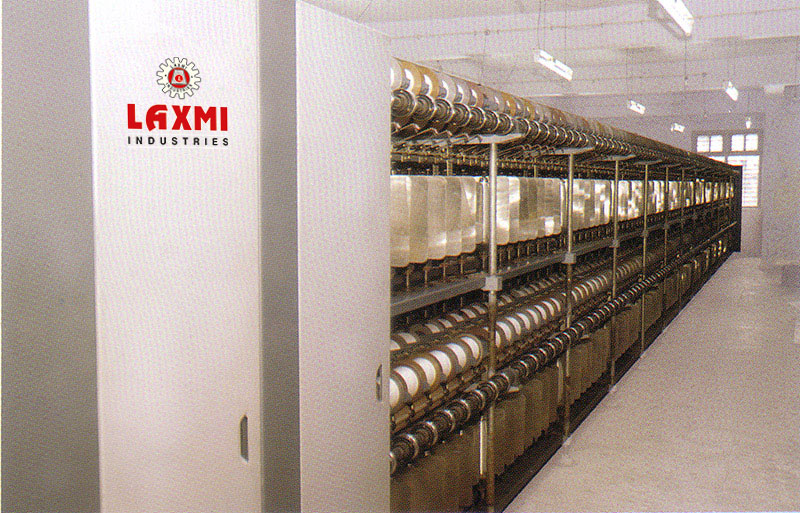

TFO Twister For Polyester & Viscose Yarn - LI 128 (60/70/90 mm Pot Dia)



Technical Specification

Spindle 320 352 384 416 448 480 512
Section 10 11 12 13 14 15 16
Power 5 HP X 2 5 HP X 2 5 HP X 2 7.5 HP X 2 7.5 HP X 2 10 HP X 2 10 HP X 2
Length (ft) 50'-01" 54'-05" 58'-9" 63'-00" 67'-04" 71'-08" 76'-00"
Spindle Pitch 160 mm
Machine Width 3 Feet
Machine Height 6'-5" Feet
Spindle in Section 32 Nos
Spindle Pot 60, 70, 90 mm dia Hard Anodies & Plazma Cotting & S.S.
Feed Tensioner Boll Ceramic
Over Feed Excellent Self Design Suitable for cone winding
Take up Traversing Common suitable for cylindrical or Bioconical Gear Box
Denior 30 to 150 Denior
Viable Twist Range 300 TPM to 3500 TPM
Spindle RPM Up to 16000 (MECHANICAL SPEED)
Feed Bobbin 32 x 36 x 240/270 mm Alluminium / plastic Tubes up to 95 Dia
Yarn Take up speed Up to 60 Met/ Min
Take up Package On spring pressure Hinge Creadle
Cheese & Roll Roll 135f X 85 Drum X 128 mm Total Length
Caintain Cheese 1 KG & Roll 800 GM
Display RPM / TPM. Met/Min

Features

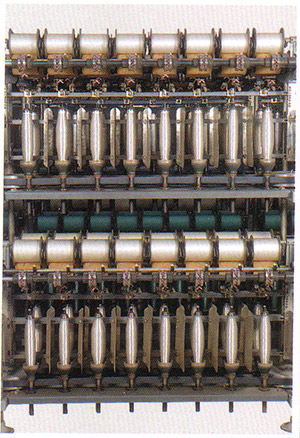

TFO For Polyester Yarn
