| Spindle Pitch |
200mm |
| Machine Width |
3 Feet |
| Machine Height |
6'-7" Feet |
| Spindle in Section |
32 nos |

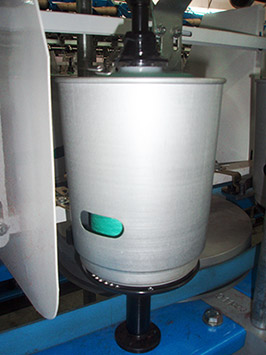

| Spindle Pot |
110 mm dia mm dia Hard Anodies & Plazma Cotting & S.S. |
| Feed Tensioner |
Boll Ceramic & Spring Capsual |
| Over Feed |
Excellent Self Design Suitable for cone winding |
| Take Up Traversing |
Common suitable for cylindrical or Bioconical |
| Count & Range |
40 to 100 & Multiply Yarn |
| Viable Twist Range |
12 TPI to 90 TPI |
| Spindle RPM |
Up to 12000 (MECHANICAL SPEED) |
| Feed Bobbin |
32 x 36 x 170 mm & 38 x 42 x 170 Alluminium / plastic Tubes up to 105 mm Dia |
| Yarn Take up Speed |
Up to 60 Met/ Min |
| Take up Package |
On spring pressure Hinge Creadle |
| Cone & Tube |
End cap size 68 x 28 to 46 x 18 x 170 mm cone / cheese 57/69 x 170 mm |
| Caintain |
2 KG |
| Display |
RPM / TPM. Met/Min |
