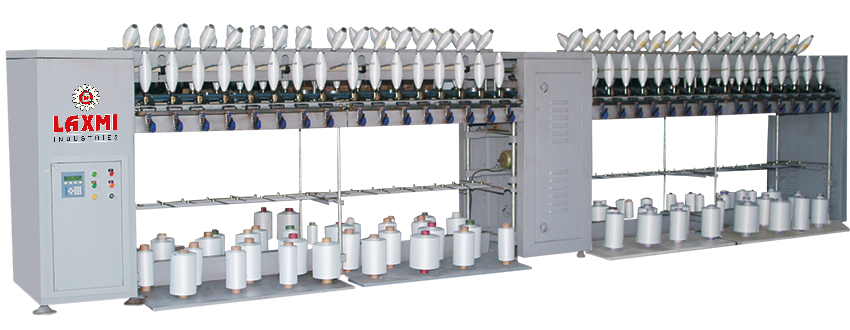

Electro Mechanical Cop Winding
Winder
Technical Specification
| Type |
Single Deck on both sides |
| Spindle |
32 |
48 |
64 |
80 |
96 |
| Section |
2 |
3 |
4 |
5 |
6 |
| Power (HP) |
1X1 + 0.5X1 |
1X1 + 0.5X1 |
1.5X1 + 0.5X1 |
2X1 + 0.5X1 |
2X1 + 0.5X1 |
| Length |
13'-02" |
16'-06" |
20'-10" |
25'-02" |
29'-6" |
| Spindle Pitch |
165 mm |
| Machine Width |
3 Feet |
| Machine Height |
5 Feet |
| Spindle in Section |
16 nos |
| Spindle speed |
3500 to 5000 RPM |
| Winding Speed |
UP to 1000 Met/Min |
| Take up Pirn |
70 pot |
32mm I.D. X 36mm O.D. Length 240 |
| |
60 pot |
32mm I.D. X 36mm O.D. Length 210 |
| Max Take up Dia |
90mm |
| Take up Capacity |
450 to 800 gm. |
| Tention |
Dial Tensor |
| Supply Package |
Pirn cheese cone, Max 300mm dia and 450mm Length |
| Other Device |
Oiling Device |
| Travers System |
Cam Box with Oil Bath 1 mm ersed, Cylinder cam & Anti patterning device |
