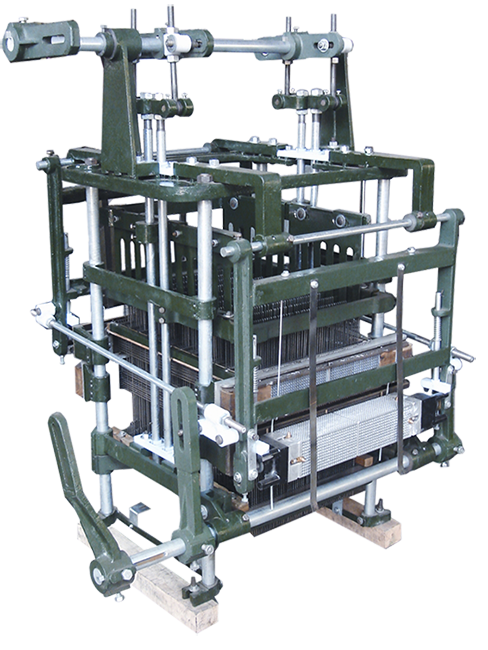

| Model No. 600 Hook Jacquard | Power Jacquard Machine 600 Hooks |
|---|---|
| Pitch | Cross Pitch |
| Holes | 53 x 12 |
| Design Card Size | 420 x 85mm |
| Net Hooks | 632 Hooks |
| Height | 864 mm |
| Width | 1067 mm |
| Length | 1118 mm |
| Cylinders & Lift | Double |
| Framing | Used in graded casting |
| Cylinders & Needle Plates | Special Aluminium |
| Hooks & Needles | Special steel string wire |
| Driven by | Link & Roller Chain |
| Power Consumption | 0.75 hp (Horse Power) |
